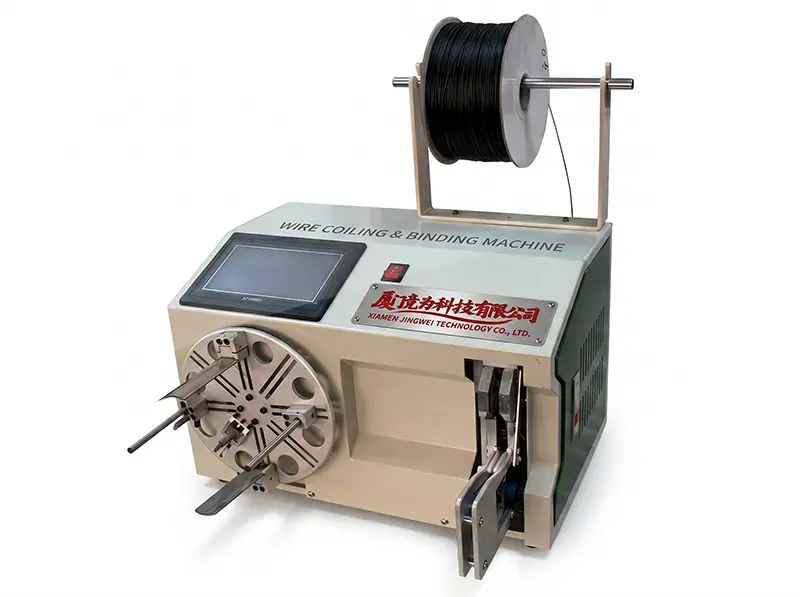

Wire Rope Coiling Binding Machine WPM-212C
Wire Rope Coiling Binding Machine WPM-212C
  • Wire Rope Coiling Binding Machine WPM-212C

  • Model No: WPM-212C

  • Wire Rope Coiling Binding Machine, wire Coiling Machine, Automatic Wire Coiling Machine, Automatic Wire Coiling Winding Tie Machine Winding range* 50-250mm
    Binding range* 18-45mm
    Twist shape Round, long, 8shape
    Available wireAC cable, DC cable, data line, video cable, and other electric wires
    Length accuracy ±(0.002*L) mm
    Productivity 66-75 times/min
    Noise level <70dBA
    Electrical connection AC 220/110V/50/60HZ
    Operation interface Bilingual
    Machine dimensions: 500*300*400mm
    Weight: 52kg
    Package: Wooden case

  • Inquiry now
Detailed description
Wire Coiling Binding Machine, wire Coiling Machine, Automatic Wire Coiling Machine, Automatic Wire Coiling Winding Tie Machine
coiling tying machine
1. Semi-automatic winding& bunding machine takes advanced technology and precision manufacturing, winding and tying   AC cable, DC cable, data wire, cable, other electric wires, and twisted bundles. Wire heads can be on one side or two sides. Winding and tying are completed at one time.
2. This work efficiency is three to four times faster than working by hand. Ending the history of huge labor and hurting fingers as well as saving the high cost of the owner.

Characters:
1. The machine is controlled by PLC or controller and touch screen display. Speed of winding cable, several circles can be set up at random according to users’ requirements.

2. This machine can display the actual production quantity at any time, and also set up the quantity of each carton. When the quantity range setting quantity, the machine will automatically alarm and shut down.






Wire Rope Coiling Binding Machine, wire Coiling Machine, Automatic Wire Coiling Machine, Automatic Wire Coiling WindingWire Rope Coiling Binding Machine, wire Coiling Machine, Automatic Wire Coiling Machine, Automatic Wire Coiling Winding, wire Coiling Machine, Automatic Wire Coiling Machine, Automatic Wire Coiling Winding Tie MachineWire Rope Coiling Binding Machine, wire Coiling Machine, Automatic Wire Coiling Machine, Automatic Wire Coiling Winding, wire Coiling Machine, Automatic Wire Coiling Machine, Automatic Wire Coiling Winding Tie Machine

Model

WPM-212

WPM-212C

WPM -212L

Winding range*

50-200mm

 50-250mm

 50-300mm

Binding range*

8-30mm

 18-45mm

 40-80mm

Twist shape

Round, long, 8shape

 Round, long, 8shape

 Round, long, 8shape

Available wire

AC cable, DC cable, data line, video cable, other electric wires

AC cable, DC cable, data line, video cable, other electric wires

AC cable, DC cable, data line, video cable, other electric wires

Length accuracy

±(0.002*L) mm

 ±(0.002*L) mm

 ±(0.002*L) mm

Productivity

66-75 times/min

 66-75 times/min

 66-75 times/min

Noise level

<70dBA

 <70dBA

 <70dBA

Electrical connection

AC 220/110V/50/60HZ

 AC 220/110V/50/60HZ

 AC 220/110V/50/60HZ

Operation interface

Bilingual

 Bilingual

 Bilingual

Machine dimension:

500*300*400mm

 500*300*400mm

 500*300*400mm

Weight:

40kg

 52kg

 65kg

Package:

Wooden case

 Wooden case

 Wooden case

Delivery Information

Port of Loading:

Xiamen

Xiamen

 Xiamen

Lead time

3-5 days after payment

3-5 days after payment

3-5 days after payment

Payment Way

T/T, Paypal, Western Union

T/T, Paypal, Western Union

T/T, Paypal, Western Union
