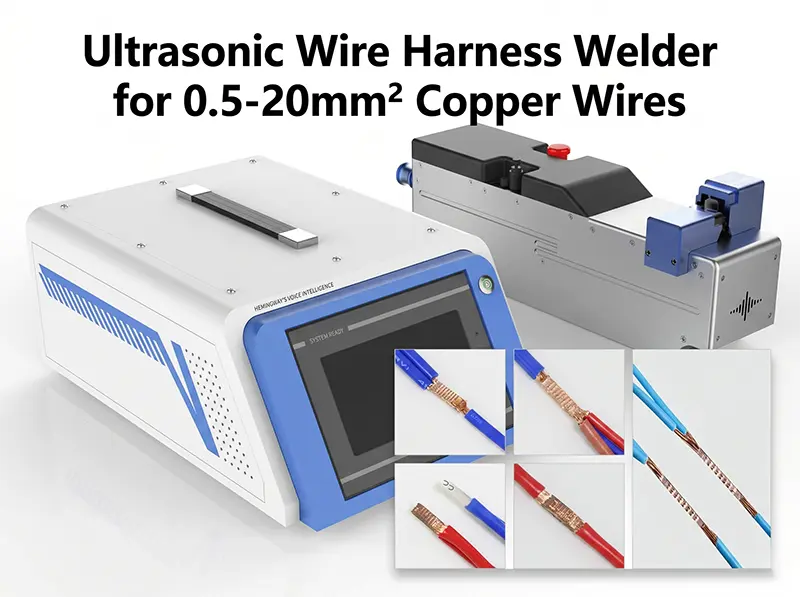

Portable Ultrasonic Wire Harness Welder for 0.5-20mm² Copper Wires WPM-001N

Name: Portable Ultrasonic Wire Harness Welder for 0.5-20mm² Cop...
Brand: JINGWEI
SKU: WPM-001N
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-001N
Specifications
Model Number: WPM-001N
Operating Frequency: 20KHz
Wire Capacity: 0.5mm² - 20mm² copper wire
Input Voltage: AC 220V/50Hz
Equipment Power: 2000W
Equipment Weight: 20kg (welding rack) + 13kg (electric box)
Rack Size: 517*142*181(mm)
Chassis Dimensions: 453*300*178(mm)
Display: 7" Touchscreen
Production Efficiency: ~0.6s/time
Core Components: Generator, transducer, welding head
Moving Parts: Cylinder, stepping motor
Inquiry now

1.1 Equipment Overview
WPM-001N ultrasonic wiring harness welding machine is an economical portable welding machine designed as a whole machine. It has the advantages of exquisite and lightweight appearance, small footprint, safe and simple operation, and low maintenance cost. It can provide enterprises with efficient welding methods and reduce production costs. It is suitable for 0.5mm² - 20mm² copper wire harness welding, in automobiles, instrumentation, communication equipment, household appliances, and other widely used fields.

1.2 Equipment features
High-quality imported ultrasonic transducer, strong power, good stability
Welding speed is fast, high energy efficiency, and can be completed within 10 seconds of a welding
Easy to operate, no need to add auxiliary materials
Multiple welding modes are supported
Prevent air welding and effectively prevent welding head damage
Hd LED display, intuitive data, real-time monitoring, effective guarantee of welding yield

1.3 Welding effect display

1.4 Technical parameters of equipment
Operating frequency 20KHz
Rack size 517*142*181(mm)
Chassis dimensions 453*300*178(mm)
Input voltage AC 220V/50Hz
Weld the square of the harness 0.5mm² - 20mm² copper wire
Welded copper wire (aluminum wire) wire diameter Φ 0.3 mm or less
Equipment power 2000W
Equipment weight 20kg(welding rack)+13kg(electric box)
Display mode 7 "touchscreen
Production efficiency
About 0.6s/ time, depending on the square of the weld
Core piece Generator, transducer, welding head
Moving parts Cylinder, stepping motor

1.5 Equipment structure
