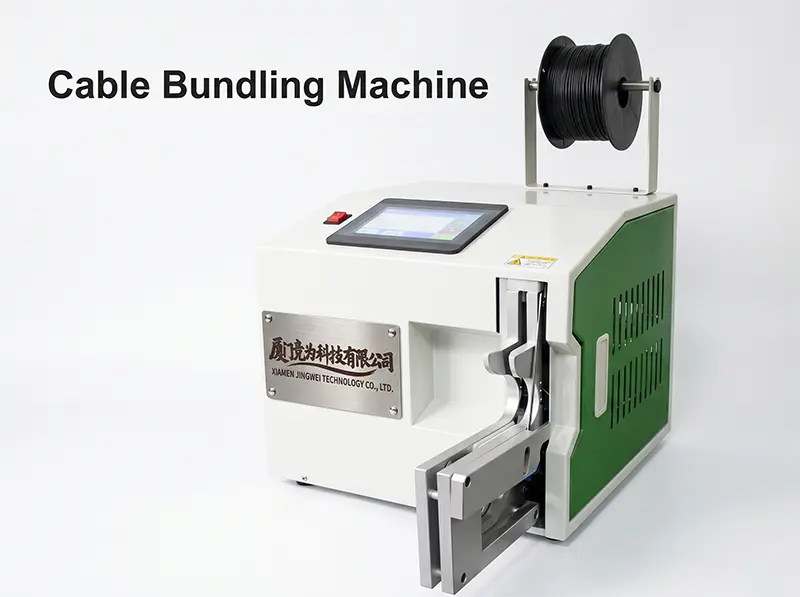

Name: Automatic Touch Screen Cable Bundling Machine WPM-845D
Brand: JINGWEI
SKU: WPM-845D
Availability: InStock
Rating: 5 (1 reviews)

Twist Tie Machine, Bundle Tying Machine, wire Bundling Machine, Cable Bundling Machine
Automatic Binding machine with touch screen WPM-845D
Equipment specifications and requirements
The machine is equipped with four motors (Motor and twisting wire motor for stepping motor), Adopt PLC program control for feeding cable tie, automatic cutting, and twisting cable tie together. Winding motor for stepping motor by pedals control,
The machine applicable range: The machine applicable range:
Smaller machine: Available bind wire Diameter: 5MM-30MM
Smaller machine: Available bind wire Diameter: 8MM-30MM
Medium-sized machine: Available bind wire Diameter: 18MM-45MM
Large machine: Available bind wire Diameter: 40MM-80MM

Model	WPM-845A	WPM-845B	WPM-845C	WPM-845D
Voltage	AC220/50Hz AC110/60Hz	AC220/50Hz AC110/60Hz	AC220/50Hz AC110/60Hz	AC220/50Hz AC110/60Hz
Rated power	≤100W	≤100W	≤100W	≤100W
Dimensions	L350×W456×H315mm (Ribbon holder excluded)	L380×W420×H340mm (Ribbon holder excluded)	L380×W435×H340mm (Ribbon holder excluded)	L380×W435×H340mm (Ribbon holder excluded)
Weight	25KG	32KG	40KG	45KG
Tie length	65-130mm	75-140mm	120-190mm	200-300mm
Bundling diameter	5-30mm	8-30mm	18-45mm	40-80mm
Bundling speed	0.6s/time	0.6s/time	0.6s/time	0.6s/time
Ribbon	iron core plastic coating	iron core plastic coating	iron core plastic coating	iron core plastic coating
Input method	HMI touch screen	HMI touch screen	HMI touch screen	HMI touch screen

1.Input voltage: AC220V 50HZ/60HZ AC110V 60HZ
2.Power:<100W
3.Bundle wire speed:0.75 Sec/Time，66-75Time/Minute
6.Capacity:2200/hour ( wire twist and bundle)
Using environment
1. Ambient humidity≤85%RH
2.No violent shaking, Vibration, No corrosive air, No dusty 2.No violent shaking, Vibration, No corrosive air, No dusty
