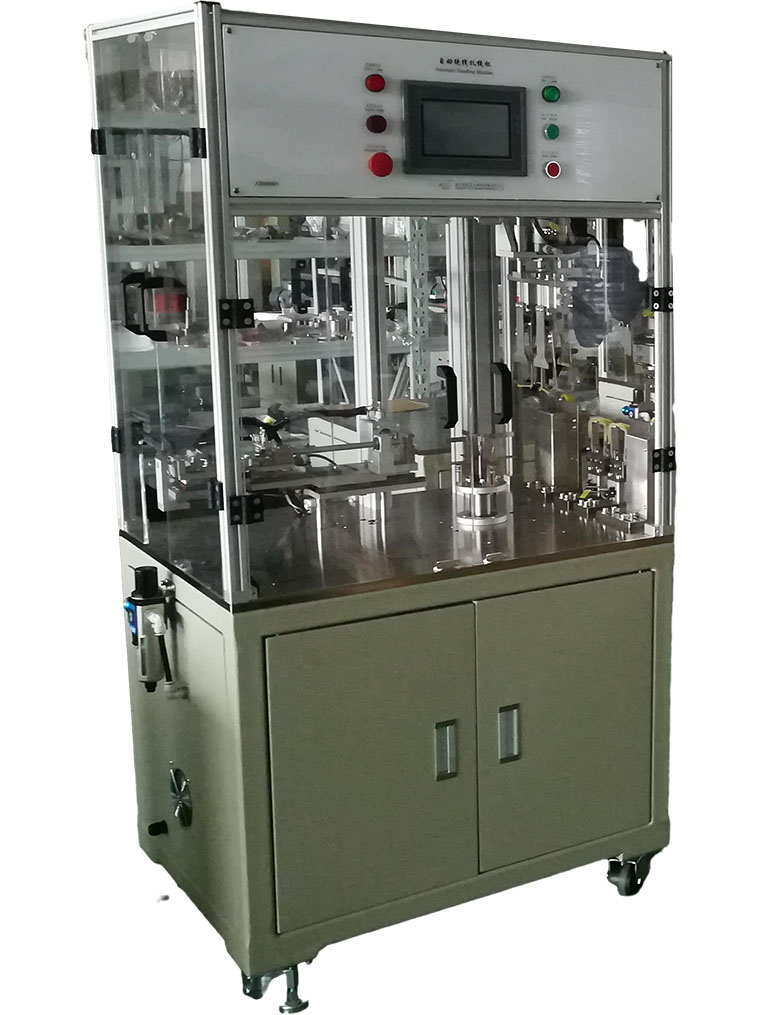

Automatic Plastic Filament Coiling & Enlacing Machine ACE0001

  • Model No: ACE0001

  • Specifications

    Model Number: ACE0001
    Filament Diameter: 1.0～5.0 mm
    Feeding Speed: ≤2.0 m/s
    Coiling Inner Radius: 70～100 mm
    Coiling Length: 5～30 m
    Production Rate: 2～5 Pcs/min (based on 15m length)
    Operator Required: 1 person (can operate 2～4 units)
    Machine Dimensions: 1350 mm (L) × 650 mm (W) × 1700 mm (H)
    Machine Weight: Approx 300 kg
    Power Supply: 1 Phase AC 220V 50Hz 2Kw
    Compressed Air: 0.4～0.6 Mpa, 1 m³/hr
  • Inquiry now


Auto Cutting Coiling & Enlacing Machine ACE0001
MACHINE CHARACTERISTIC
ACE0001-Auto coiling and enlacing machine is mainly applied to cut fixed length, wind and enlace of plastic filament, like grass trimming line and nylon monofilament. The machine can automatically cut, wind, enlace plastic filament and discharge products through parameter setting and PLC system, which is low manual cost and high production capacity. One person is needed to operate the machine and the production can be achieved by supplying the electricity and compressed air.
1. Human machine interface of touch screen; central control; convenient operation; parameter setting; visual display.
2. According to the setting parameter, the machine can automatically match the operation and count the output under the PLC system.
3. Photoelectric detection system can automatically detect the lacking, spilling and none wire conditions and alarm and stop the production.
4. Complete alarming and safety protecting function; double protection of electricity and machinery which is safe and reliable.
MACHINE CONFIGURATION
1. Feeding module.
2. Cutting module.
3. Coiling module.
4. Enlacing module.
5. Transposing module.
6. Frame module.
7. Program and electrical control system.
PRINCIPLE OF MACHINE RUNNING
1. Feeding module feeds wire through precision wheels that driven by stepping motor.
2. Cutting module cuts wire through alloy cutter that guided by linear guideway and driven by cylinder.
3. Coiling module driven by stepping motor and match feeding, winding and traversing motion.
4. Enlacing module driven by stepping motor and enlaces product in double station.
Provided Technical Drawing
1. Operation manual.
2. Machine assembly drawing.
3. Pneumatic and control drawing.
4. Electrical and control drawing.
5. Spare parts and wearing parts list.

Machine Basic Parameter
filament diameter: 1.0～5.0 mm
Speed of feeding: ≤2.0 m/s
Coiling inradium: 70～100 mm
Coiling length: 5～30 m
Production rate: 2～5 Pcs/min（based15mlength）
Operator required: 1 person（can operate 2～4 units）
Length of machine: 1350 mm
Width of machine: 650 mm
Height of machine: 1700 mm
Weight of machine: Approx300 kg
Power supply: 1 Phase AC 220V 50Hz 2Kw
Compressed air: 0.4～0.6 Mpa1 m3/hr
