Name: Automatic Cable Winding Machine with 200mm Stroke WPM-2024L
Brand: JINGWEI
SKU: WPM-2024L
Availability: InStock
Rating: 5 (1 reviews)

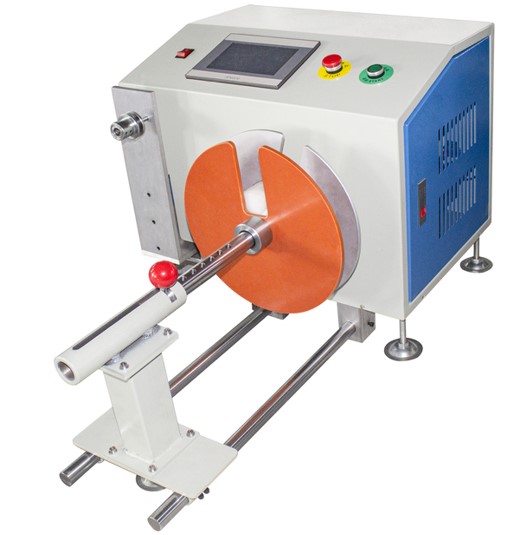

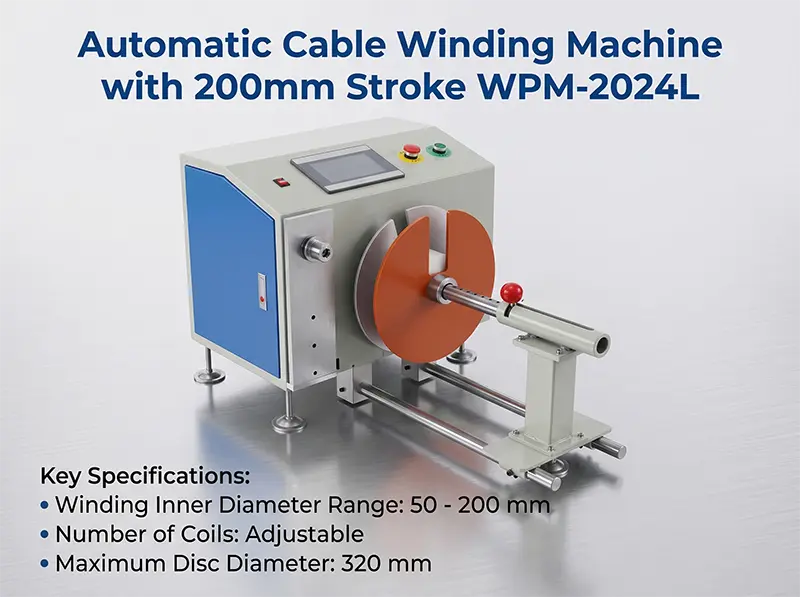

Automatic Arrangement Winding Machine WPM-2024L

This advanced winding machine offers a wide range of features and capabilities. The winding inner diameter range of this machine is from 50 to 200 millimeters, providing flexibility for different winding requirements. The number of coils can be adjusted according to specific needs. With a maximum disc diameter of 320 millimeters, it can handle larger discs with ease. The arrangement stroke is available in two options - the standard 120 millimeters and an optional 200 millimeters.

The input voltage for this machine can be either AC220V at 50HZ or 60HZ, or AC110V at 50HZ or 60HZ. Additionally, special voltages can be customized to meet specific electrical requirements. The rated power of this machine is less than 800 watts, ensuring efficient power consumption. It has a load capacity of 15 kilograms, making it suitable for handling various materials. The maximum machine size is 900 by 600 by 450 millimeters, providing a compact yet functional design. The net weight of the machine is 60 kilograms, and the gross weight is 65 kilograms.

Main Electrical Parts:
1. The winding mechanism of this machine is driven by a 750-watt servo motor combined with a reducer set. This combination provides precise and reliable winding operations.
2. The control system consists of a PLC and a touch screen integrated machine, offering intuitive control and easy operation.
3. The sliding guide rail is sourced from NSK in Japan, known for its high quality and durability.
4. The rack and chassis are homemade, ensuring stability and durability.
5. It is equipped with 2 sets of relays and one set of OMRON sensors for accurate sensing and control.
6. There is also one set of power supply system to ensure stable power supply.
7. The line mechanism adopts a step rack reciprocating line example, providing efficient wire arrangement.

Processing Fixture Part:
1. The important mounting plate of this machine is manufactured using a CNC computer gong numerical control machining center, ensuring high precision and quality.
2. The processing parts are strictly in accordance with the engineering design. Various machining processes such as milling machine, grinder, lathe, wire cutting, and heat treatment are employed to ensure the quality and accuracy of the parts. After processing, clamping and electrical installation and commissioning are carried out.
3. The wire harness (shaft) used is made of Sai steel material. The size is according to the customer's provision. The machine is only equipped with a winding axis for efficient winding operations.
