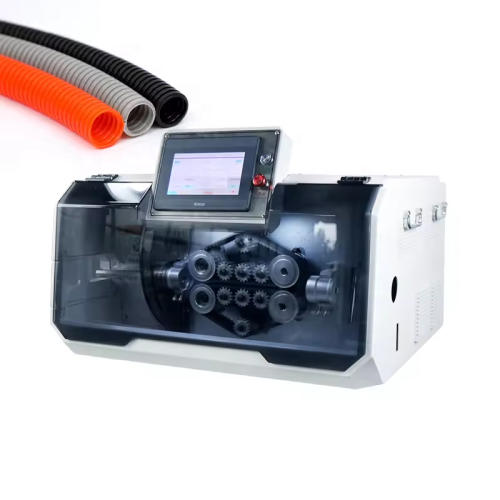

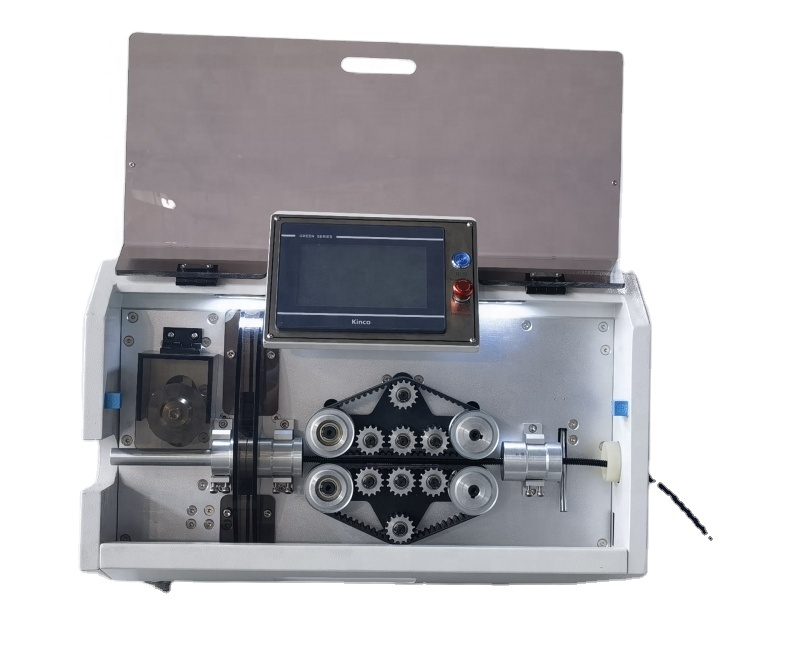

Automatic Rigid PVC & Rubber Hose Tube Cutting Machine
- Inquiry Email: Kevinxu@xmjw.ltd
- Product Code: pipe1215352446
- Availability: In Stock
Full Automatic plastic Pipe tube Cut Splitting Machine Automatic Pipe Cutting Machine
Specification
| Display | 7 Inch Man-Machine Interface |
| MOQ | 1 Set |
| Customized | MOQ 1 Set For Customized Version |
| Function |
1. Fixed-length cutting and cutting of corrugated pipe, PVC pipe, thin-wall pipe, etc.; High speed flying cutting; 2. Section function: continuous section |
| Processing Range | 4-35mm |
| Cutting Length | 1mm--999999.99mm |
| Cutting Tolerance | Within 0.005*L (L=Cutting Length) |
| Production Rate | 100000pcs/hour(100mm/Diameter 10mm) |
| Drive Mode | 10-wheel drive; Servo Motor Optional |
| Feeding System | Belt Feeding, No embossing or scratches on the pipe |
| Lifting Operation Mode | Digital Adjustment of pressure wheel/roller height |
| Split Power Mode | Servo Motor |
| Split Speed Adjustment | Touch Screen Stepless Speed Regulation |
| Split Position | Any Position,Any Length, Continuous Section |
| Power Supply | AC220V 50/60Hz;Optional: 110v 50/60Hz |
| Air Source | NO Air Source |
| Dimension | 68*60.5*52cm |
| N.W | 80KG |
Feature:
1, Optional: MES System,Internet Of Things system, fixed-point inkjet function, mid-stripping function, external auxiliary equipment alarm;
2, User-friendly system, intuitive operation via 7-inch color touch screen;
3, Modular interface, convenient for linking accessories and peripheral equipment;
4, Modular Design, future upgradeable;
| Brand Name | STM |
| Cutting length | 1-999999.99mm |
| Dimension | 680*605*520mm |
| Function | Cutting |
| Model | CP-35VFL |
| Place of Origin | Henan;China |
| Processing Range | 4-35mm |
| Product name | Corrugated pipe PVC pipe cutting machine |
| Use | Cutting |
| Voltage | AC 220V/110V |
| Warranty | One Year |
| Weight | 80kg |
