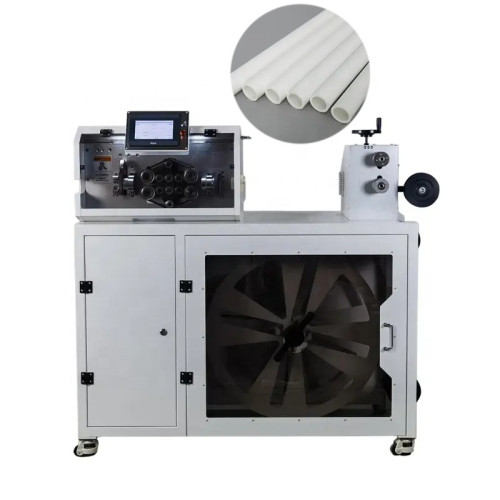

Automatic Heat Shrink Tube & PVC Pipe Cutting Machine
- Inquiry Email: Kevinxu@xmjw.ltd
- Product Code: pipe1215206141
- Availability: In Stock
Fully automatic rotary knife precise corrugated bellows pipe/plastic tube cutting machine
Specification
| soft tubes cutting machine | |
| Display | 7 Inch Man-Machine Interface |
| MOQ | 1 Set |
| Customized | MOQ 1 Set For Customized Version |
| Function | Fixed Length Cutting and Splitting Of Thin-walled Pipes such as Corrugated Pipes/PVC Pipes/Heat-Shrinkable Pipes |
| Processing Range | 4-35mm |
| Cutting Length | 1mm--999999.99mm |
| Cutting Tolerance | Within 0.005*L (L=Cutting Length) |
| Discharge range | 120-800mm |
| Production Rate | 100000pcs/hour(100mm/Diameter 10mm) |
| Drive Mode | 10-wheel drive; Servo Motor Optional |

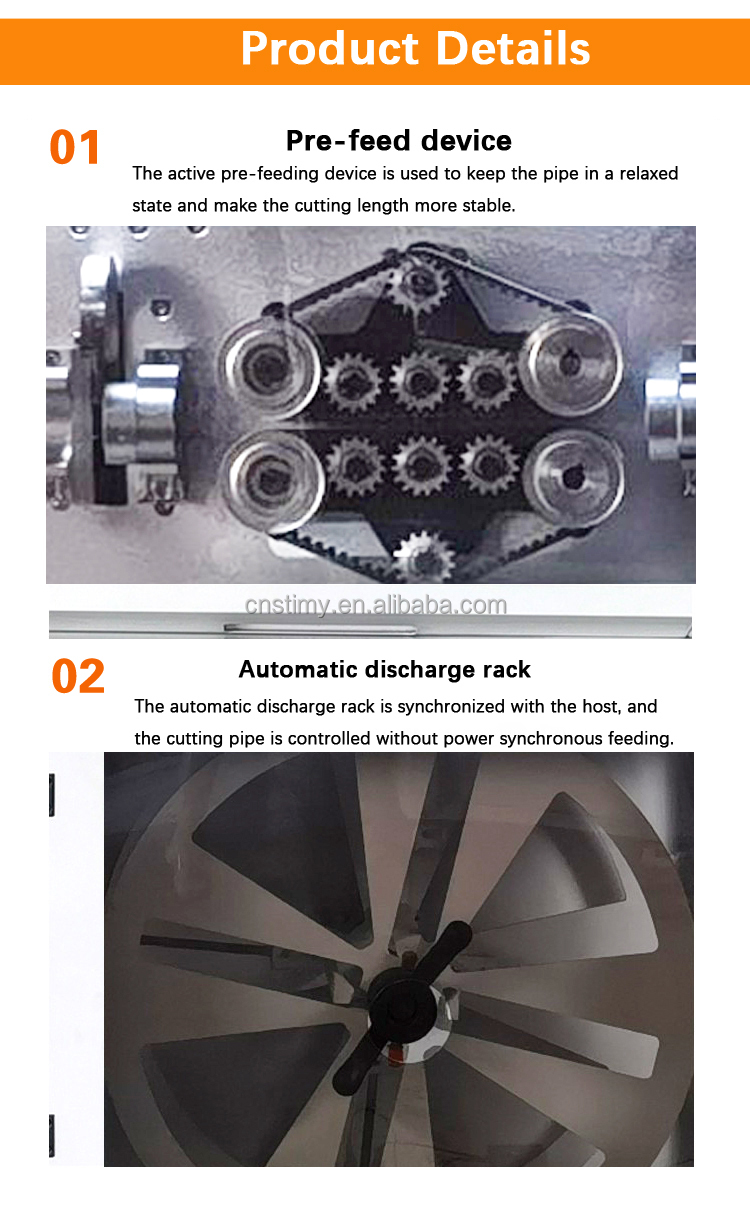

| Feeding System | Belt Feeding, No embossing or scratches on the pipe |
| Lifting Operation Mode | Digital Adjustment of pressure wheel/roller height |
| Split Power Mode | Servo Motor |
| Split Speed Adjustment | Touch Screen Stepless Speed Regulation |
| Split Position | Any Position,Any Length, Continuous Section |
| Power Supply | AC220V 50/60Hz;Optional: 110v 50/60Hz |
| Air Source | NO Air Source |
| Dimension | 1550*650*140cm |
| N.W | 260KG |
Feature:
1, Optional: MES System,Internet Of Things system, fixed-point inkjet function, mid-stripping function, external auxiliary equipment alarm;
2, User-friendly system, intuitive operation via 7-inch color touch screen;
3, Modular interface, convenient for linking accessories and peripheral equipment;
4, Modular Design, future upgradeable;
5, A variety of additional options can customize the system. Special pipe processing can be customized.
| Air supply | No air supply required |
| Brand Name | STM |
| Cutting length | 1-999999.99mm |
| Cutting tolerance | within 0.005*L (L=cutting length) |
| Dimension(L*W*H) | 1550*650*1400mm |
| Place of Origin | Henan;China |
| Processing Range | 4-35mm |
| Product Model | CP-35VFA |
| Usage | Multifunctional |
| Use | Multifunctional |
| Voltage | 220/110V |
| Warranty | One Year |
| Weight | 260kg |
